Membuat "Form Barang Aplikasi Inventory VB 6.0"

Membuat Form Barang

Pembahasan ini merupakan kelanjutan dari pokok bahasan "Membuat Aplikasi Inventory dan Lapoan Keuangan", baca terlebih dahulu pokok bahasan tersebut agar lebih jelas.

Pada pembahasan kali ini melanjutkan dari pembahasan Aplikasi Inventory dan Laporan Keuangan VB 6.0, kita lanjutkan untuk pembuatan Form Barang. Di blog-blog yang lain sudah banyak yang membahas mengenai pembuatan Data Barang, tetapi form data barang yang akan dibahas di sini adalah berdasarkan sebuah studi kasus di suatu tempat yang bergerak dibidang Dagang dan Anda nantinya dapat mengembangkan aplikasi ini untuk tempat yang lain.

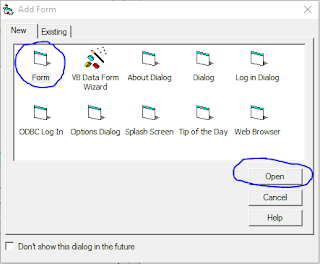

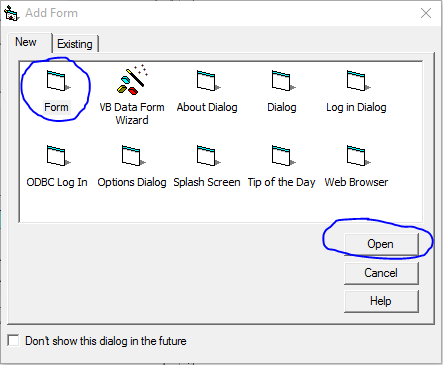

Untuk membuat Form Master Data Barang di atas, kita tambahkan terlebih dahulu File Form ke dalam project kita melalui menu Project ⇛ Add Form. Maka akan muncul kotak dialog seperti gambar berikut.

Anda pilih Form, kemudian Anda klik open.

Silahkan Anda simpan kembali Project Anda, Simpan form yang barusaja Anda tambahkan ke dalam project dengan nama Frm_MasBar.frm. Kemudian Anda desain form tersebut seperti gambar di bawah ini.

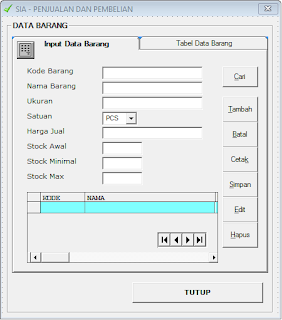

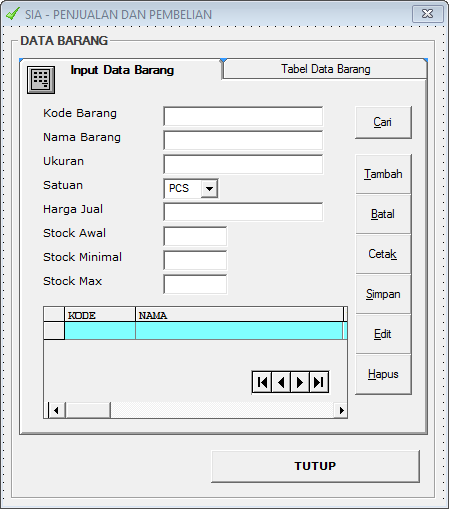

GAMBAR 1

GAMBAR 2

Dalam tampilan desain Form Master Data Barang terdapat dua tampilan seperti GAMBAR 1 dan GAMBAR 2. Pada tampilan GAMBAR 1 adalah tampilan untuk Input Data, Edit Data, Hapus Data, dan Cetak Data. Sedangkan pada GAMBAR 2 adalah tampilan untuk Pengurutan Data dan Pencarian Data.

Pengaturan Objek GAMBAR 1 dan GAMBAR 2

Kontrol	Properties	Nilai
Form1	Name Caption Font Font size Font style Picture	Frm_login SIA – MASTER BARANG Arial 10 Standard [ambil dari komputer gambar yang sudah Anda download]
Frame	Name Caption	Frame1 DATA BARANG
SSTab	Name Tabs TabPerRow	SSTab1 2 2
Pengaturan Custom pada objek SSTab seperti gambar di bawah ini.
Label1	Name Caption Font Font size Font style	Label1 Kode Barang Arial 10 Standard
Label2	Name Caption Font Font Size Font Style	Label2 Nama Barang Arial 10 Standard
Label3	Name Caption Font Font Size Font Style	Label3 Ukuran Arial 10 Standard
Label4	Name Caption Font Font Size Font Style	Label4 Satuan Arial 10 Standard
Label5	Name Caption Font Font Size Font Style	Label5 Harga Jual Arial 10 Standard
Label6	Name Caption Font Font Size Font Style	Label6 Stock Awal Arial 10 Standard
Label7	Name Caption Font Font Size Font Style	Label7 Stock Minimal Arial 10 Standard
Label8	Name Caption Font Font Size Font Style	Label8 Stock Max Arial 10 Standard
TextBox1	Name Font Font Size Font Style Text	T_Kode Arial 10 Standard [dikosongkan]
TextBox2	Name Font Font Size Font Style Text	T_Nama Arial 10 Standard [dikosongkan]
TextBox3	Name Font Font Size Font Style Text	T_Ukuran Arial 10 Standard [dikosongkan]
ComboBox	Name Font Font Size Font Style Text List	Cbo_Satuan Arial 10 Standard PCS PCS BOX UNIT GR KG
MaskEditBox	Name DataFormat Font Font Size Font Style Format PromptChar	T_HrgJual Currency Arial 10 Standard Rp #,##0 _
TextBox4	Name Font Font Size Font Style Text	T_StockAwal Arial 10 Standard [dikosongkan]
TextBox5	Name Font Font Size Font Style Text	T_StockMin Arial 10 Standard [dikosongkan]
TextBox6	Name Font Font Size Font Style Text	T_StockMax Arial 10 Standard [dikosongkan]
DataGrid	Name Font Font Size Font Style	DG_Input Arial 10 Standard
Adodc	Name ConnectionString	ADOBRG Provider=MSDASQL.1;Persist Security Info=False;User ID=root;Data Source=DBSIARETAIL;Initial Catalog=dbsiaretail
CommandButton1	Name Caption Font Font Size Font Style	Cmd_Cari &Cari Verdana 10 Standard
CommandButton2	Name Caption Font Font Size Font Style	Cmd_Tambah &Tambah Verdana 10 Standard
CommandButton3	Name Caption Font Font Size Font Style	Cmd_Batal &Batal Verdana 10 Standard
CommandButton4	Name Caption Font Font Size Font Style	Cmd_Cetak Ceta&k Verdana 10 Standard
CommandButton5	Name Caption Font Font Size Font Style	Cmd_Simpan &Simpan Verdana 10 Standard
CommandButton6	Name Caption Font Font Size Font Style	Cmd_Edit &Edit Verdana 10 Standard
CommandButton7	Name Caption Font Font Size Font Style	Cmd_Hapus &Hapus Verdana 10 Standard
CommandButton8	Name Caption Font Font Size Font Style	Cmd_Tutup TUTUP Verdana 10 Standard
Isi dari SSTab(1) TABEL DATA BARANG.
Label9	Name Caption Font Font size Font style	Label9 Urutan Arial 10 Standard
Label10	Name Caption Font Font Size Font Style	Label10 Cari Berdasarkan Arial 10 Standard
Label11	Name Caption Font Font Size Font Style	Label11 Cari Data Arial 10 Standard
ComboBox	Name Font Font Size Font Style Text List	Cbo_Urut Arial 10 Standard Kode Barang Kode Barang Nama Ukuran Satuan Harga Jual
ComboBox	Name Font Font Size Font Style Text List	Cbo_Cari Arial 10 Standard Kode Barang Kode Barang Nama Ukuran Satuan Harga Jual
TextBox7	Name Font Font Size Font Style Text	T_Cari Arial 10 Standard [dikosongkan]
DataGrid	Name Font Font Size Font Style	DG_Data Arial 10 Standard

Selanjutnya Tuliskan Kode Programnya seperti berikut.

KODE PROGRAM Module Login

'Deklarasi koneksi dan recordset Dim cnn As New ADODB.Connection Dim rs As New ADODB.Recordset Private Sub cmd_tutup_Click() Unload Me End Sub Private Sub Form_Activate()     'Ukuran dan posisi form     Me.Top = 100     Me.Left = 1000     ADO_BRG.Refresh End Sub Private Sub Form_Load() Call JumlahData End Sub Private Sub Cmd_Batal_Click()     T_Kode.Enabled = True     T_Nama.Enabled = True     T_Ukuran.Enabled = True     T_stockawal.Enabled = True     T_HrgJual.Enabled = True     T_StockMax.Enabled = True     T_StockMin.Enabled = True     Cbo_Satuan.Enabled = True         Call Kosong         Cmd_Edit.Enabled = False     Cmd_Hapus.Enabled = False     Cmd_Batal.Enabled = False     Cmd_Tambah.Enabled = True End Sub Private Sub Cmd_Hapus_click() Dim sql As String Dim konfirmasi As String On Error GoTo SalahHapus If T_Kode.Text <> "" And T_Kode.Enabled = False Then            konfirmasi = MsgBox("Mau Hapus Record???", vbYesNo + vbCritical, "Konfirmasi")     If konfirmasi = vbYes Then             'Menghapus record pada tabel         sql = "Delete From Barang " & _             " Where kd_Barang='" & T_Kode.Text & "'"                 'Mengeksekusi perintah SQL         Conn.Execute (sql)                 T_Kode.Enabled = True         T_Nama.Enabled = True         Cbo_Satuan.Enabled = True         T_HrgJual.Enabled = True         T_stockawal.Enabled = True         T_StockMin.Enabled = True         T_StockMax.Enabled = True         T_Ukuran.Enabled = True                 Cmd_Tambah.Enabled = True         Cmd_Simpan.Enabled = False         Cmd_Hapus.Enabled = False         Cmd_Edit.Enabled = True         Cmd_Batal.Enabled = True                 Call Kosong         Call sambung         Call JumlahData               End If     End If ADO_BRG.Refresh Exit Sub SalahHapus: Select Case Err.Number Case -2147217900 errmsg = " Data Masih Terhubung Oleh Tabel Lain " & vbCrLf Case Else errmsg = Err.Description End Select MsgBox errmsg, vbCritical + vbOKOnly, "Informasi:" End Sub Private Sub cmd_Keluar_Click() 'Keluar dari form Unload Me End Sub Private Sub cmd_Simpan_Click() Dim sql As String Dim panjang As Byte panjang = Len(T_Kode.Text) On Error GoTo SalahIsi If T_Kode.Text = "" Or T_Nama.Text = "" Or T_Ukuran = "" Or Cbo_Satuan = "" Or T_HrgJual = "" Or T_stockawal = "" Or T_StockMax = "" Or T_StockMin = "" Then MsgBox "Data Belum Lengkap", vbOKOnly, "Data" ElseIf panjang < 5 Then MsgBox "Kode Barang Minimal 5 Digit", vbCritical + vbOKOnly, "Kode Barang" ElseIf Val(T_StockMax.Text) < Val(T_StockMin.Text) _ Then MsgBox "   Jumlah Stock Max Sama " + Chr(13) + "atau lebih dari Stock Min" T_StockMax.SetFocus T_StockMax.Text = "" ElseIf T_Kode.Text <> "" And T_Nama.Text <> "" And T_Ukuran.Text <> "" And Cbo_Satuan.Text <> "" And T_HrgJual.Text <> "" And T_stockawal <> "" And T_StockMax.Text <> "" And T_StockMin.Text <> "" _ And Val(T_StockMax.Text) >= Val(T_StockMin.Text) And panjang >= 5 Then         If T_Kode.Enabled = True Then             'Menambah record pada tabel             sql = "Insert into Barang Values('" & T_Kode.Text & "','" & T_Nama.Text & "','" & T_Ukuran.Text & "','" & Cbo_Satuan.Text & " '," & Val(T_HrgJual.Text) & "," & Val(T_stockawal.Text) & "," & Val(T_StockMin.Text) & "," & Val(T_StockMax.Text) & ")            "             'Mengeksekusi perintah SQL             Conn.Execute (sql)             Call sambung             ADO_BRG.Refresh             Call sambung             Call JumlahData         Else                     'Mengubah record pada tabel             sql = "Update Barang set " & _                 " NamaBarang='" & T_Nama.Text & "'," & _                 " Ukuran='" & T_Ukuran.Text & "'," & _                 " satuan='" & Cbo_Satuan.Text & "'," & _                 " HargaJualBarang=" & T_HrgJual.Text & "," & _                 " stockAwal=" & T_stockawal.Text & "," & _                 " stockmin=" & T_StockMin.Text & "," & _                 " stockmax=" & T_StockMax.Text & " Where Kd_Barang='" & T_Kode.Text & "'"                         'Mengeksekusi perintah SQL                         Conn.Execute (sql)                                 End If                 T_Kode.Enabled = False         T_Nama.Enabled = False         Cbo_Satuan.Enabled = False         T_HrgJual.Enabled = False         T_stockawal.Enabled = False         T_StockMin.Enabled = False         T_StockMax.Enabled = False         T_Ukuran.Enabled = False                 Cmd_Simpan.Enabled = False         Cmd_Batal.Enabled = False                 Cmd_Tambah.Enabled = True         Cmd_Hapus.Enabled = True         Cmd_Edit.Enabled = True End If ADO_BRG.Refresh ADO_BRG.Recordset.MoveLast Exit Sub SalahIsi: Select Case Err.Number Case -2147217833 errmsg = " Angka Yang Anda Masukaan Terlalu Banyak " & vbCrLf Case Else errmsg = Err.Description End Select MsgBox errmsg, vbCritical + vbOKOnly, "Informasi:" 'MsgBox "Error:" & Err & "" & Err.Description End Sub Private Sub cmd_Tambah_Click()         T_Kode.Enabled = True         T_Nama.Enabled = True         Cbo_Satuan.Enabled = True         T_HrgJual.Enabled = True         T_stockawal.Enabled = True         T_StockMin.Enabled = True         T_StockMax.Enabled = True         T_Ukuran.Enabled = True             Cmd_Tambah.Enabled = False     Cmd_Simpan.Enabled = True     Cmd_Edit.Enabled = False     Cmd_Hapus.Enabled = False     Cmd_Batal.Enabled = True     Call Kosong T_Kode.SetFocus End Sub Private Sub cmd_edit_Click() Dim sql As String If T_Kode.Text <> "" And T_Kode.Enabled = False Then             T_Nama.Enabled = True         Cbo_Satuan.Enabled = True         T_HrgJual.Enabled = True         T_stockawal.Enabled = True         T_StockMin.Enabled = True         T_StockMax.Enabled = True         T_Ukuran.Enabled = True             End If Cmd_Edit.Enabled = False Cmd_Hapus.Enabled = False Cmd_Simpan.Enabled = True End Sub Private Sub Form_Unload(Cancel As Integer) 'Menutup koneksi Set Conn = Nothing End Sub Private Sub T_hrgjual_keypress(keyascii As Integer) If Not (keyascii >= Asc("0") & Chr(13) _      And keyascii <= Asc("9") & Chr(13) _      Or keyascii = vbKeyBack _      Or keyascii = vbKeyDelete) And Not (keyascii = 13) Then         Beep         keyascii = 0         MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan"  ElseIf keyascii = 46 Then  keyascii = 0  MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" ElseIf keyascii = 13 Then SendKeys vbTab End If End Sub Private Sub t_Kode_KeyPress(keyascii As Integer) Dim sTemplate As String   'Ganti '!@#$%^&*()_+=' dengan karakter yang Anda   'inginkan untuk dihindari diinput pada Text1   sTemplate = "`~@#$%^&*()_+|=\<,>?/;:'""" If InStr(1, sTemplate, Chr(keyascii)) > 0 Then _    keyascii = 0 'Pembacaan tombol Enter If keyascii = 13 Then         'Menjalankan fungsi TAB     SendKeys vbTab Else     'Membuat huruf besar     keyascii = Asc(UCase(Chr(keyascii))) End If End Sub Private Sub t_Kode_LostFocus() Dim sql As String Call sambung If T_Kode.Text <> "" Then         'Mencari Kode pada tabel     sql = "select * from Barang " & _         " where kd_Barang='" & T_Kode.Text & "'"         Set rs = Conn.Execute(sql)         'Jika Kode sudah ada     If Not rs.EOF Then                 'Menampilkan field yang lain         T_Nama.Text = rs.Fields("NamaBarang")         T_Ukuran.Text = rs.Fields("ukuran")         Cbo_Satuan.Text = rs.Fields("satuan")         T_HrgJual.Text = rs.Fields("HargaJualBarang")         T_stockawal.Text = rs.Fields("stockawal")         T_StockMin.Text = rs.Fields("stockmin")         T_StockMax.Text = rs.Fields("stockmax")                 T_Kode.Enabled = False         T_Nama.Enabled = False         T_Ukuran.Enabled = False         Cbo_Satuan.Enabled = False         T_HrgJual.Enabled = False         T_stockawal.Enabled = False         T_StockMin.Enabled = False         T_StockMax.Enabled = False                         Cmd_Tambah.Enabled = True         Cmd_Hapus.Enabled = True         Cmd_Edit.Enabled = True                     Else                      Cmd_Simpan.Enabled = True         Cmd_Batal.Enabled = True             End If     rs.Close         End If End Sub Private Sub Cmd_Cari_click() Dim sql As String Call sambung If T_Kode.Text = "" Then MsgBox "Masukkan Data yang Akan Dicari" T_Kode.SetFocus ElseIf T_Kode.Text <> "" Then             'Mencari Kode pada tabel     sql = "select * from Barang " & _         " where kd_Barang='" & T_Kode.Text & "'"         Set rs = Conn.Execute(sql)         'Jika Kode sudah ada     If Not rs.EOF Then                 'Menampilkan field yang lain         T_Nama.Text = rs.Fields("NamaBarang")         T_Ukuran.Text = rs.Fields("ukuran")         Cbo_Satuan.Text = rs.Fields("satuan")         T_HrgJual.Text = rs.Fields("HargaJualBarang")         T_stockawal.Text = rs.Fields("stockawal")         T_StockMin.Text = rs.Fields("stockmin")         T_StockMax.Text = rs.Fields("stockmax")                 T_Kode.Enabled = False         T_Nama.Enabled = False         T_Ukuran.Enabled = False         Cbo_Satuan.Enabled = False         T_HrgJual.Enabled = False         T_stockawal.Enabled = False         T_StockMin.Enabled = False         T_StockMax.Enabled = False                         Cmd_Tambah.Enabled = True         Cmd_Hapus.Enabled = True         Cmd_Edit.Enabled = True        Else                      Cmd_Simpan.Enabled = True         Cmd_Batal.Enabled = True             End If If rs.EOF Then MsgBox "Data yang Anda Cari Tidak Ada", vbInformation, "Data Tidak Ada" T_Kode.Text = "" T_Kode.SetFocus rs.Close End If End If End Sub Private Sub t_Nama_KeyPress(keyascii As Integer) Dim sTemplate As String   'Ganti '!@#$%^&*()_+=' dengan karakter yang Anda   'inginkan untuk dihindari diinput pada Text1   sTemplate = "`~@#$%^&*()+|=\<,>?/;:'""" If InStr(1, sTemplate, Chr(keyascii)) > 0 Then _    keyascii = 0 'Pembacaan tombol Enter If keyascii = 13 Then         'Menjalankan fungsi TAB     SendKeys vbTab Else     'Membuat huruf besar     keyascii = Asc(UCase(Chr(keyascii)))     End If End Sub Private Sub t_ukuran_KeyPress(keyascii As Integer) Dim sTemplate As String   'Ganti '!@#$%^&*()_+=' dengan karakter yang Anda   'inginkan untuk dihindari diinput pada Text1   sTemplate = "`~@#$^&*()_+|=\<,>?/;:'""" If InStr(1, sTemplate, Chr(keyascii)) > 0 Then _    keyascii = 0 'Pembacaan tombol Enter If keyascii = 13 Then         'Menjalankan fungsi TAB     SendKeys vbTab Else     'Membuat huruf besar     keyascii = Asc(UCase(Chr(keyascii)))     End If End Sub Private Sub T_stockawal_keypress(keyascii As Integer) ''If Not (keyascii >= Asc("0") & Chr(13) _ ''     And keyascii <= Asc("9") & Chr(13) _ ''     Or keyascii = vbKeyBack _ ''     Or keyascii = vbKeyDelete) And Not (keyascii = 13) Then ''        Beep ''        keyascii = 0 ''        MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" '' ElseIf keyascii = 46 Then '' keyascii = 0 '' MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" ''Else If keyascii = 13 Then SendKeys vbTab End If End Sub Private Sub T_stockmin_keypress(keyascii As Integer) ''If Not (keyascii >= Asc("0") & Chr(13) _ ''     And keyascii <= Asc("9") & Chr(13) _ ''     Or keyascii = vbKeyBack _ ''     Or keyascii = vbKeyDelete) And Not (keyascii = 13) Then ''        Beep ''        keyascii = 0 ''        MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" '' ElseIf keyascii = 46 Then '' keyascii = 0 '' MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" ''Else If keyascii = 13 Then SendKeys vbTab End If End Sub Private Sub T_stockmax_keypress(keyascii As Integer) ''If Not (keyascii >= Asc("0") & Chr(13) _ ''     And keyascii <= Asc("9") & Chr(13) _ ''     Or keyascii = vbKeyBack _ ''     Or keyascii = vbKeyDelete) And Not (keyascii = 13) Then ''        Beep ''        keyascii = 0 ''        MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" '' ElseIf keyascii = 46 Then '' keyascii = 0 '' MsgBox "   Data Harus Angka dan" + Chr(13) + "Tidak Mengandung Pecahan" ''Else If keyascii = 13 Then SendKeys vbTab End If End Sub Sub Kosong() 'Mengosongkan textbox dan masked edit T_Kode.Text = "" T_Nama.Text = "" T_Ukuran.Text = "" Cbo_Satuan.Text = "UNIT" T_HrgJual.Text = "" T_stockawal.Text = "" T_StockMax.Text = "" T_StockMin.Text = "" End Sub ' Private Sub cbo_satuan_KeyPress(keyascii As Integer)  keyascii = AutoComplete(Cbo_Satuan, keyascii, True, Asli) 'Pembacaan tombol Enter If keyascii = 13 Then         'Menjalankan fungsi TAB     SendKeys vbTab Else     'Membuat huruf besar     keyascii = Asc(UCase(Chr(keyascii))) End If End Sub Private Sub t_cari_Change() On Error GoTo SalahCari If Cbo_cari.ListIndex = 0 Or Cbo_cari.Text = "Kode Bahan Baku" Then ADO_BRG.RecordSource = "select * from Barang where kd_Barang like '%" & t_cari.Text & "%'" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 1 Then ADO_BRG.RecordSource = "select * from Barang where namaBarang like '%" & t_cari.Text & "%'" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 2 Then ADO_BRG.RecordSource = "select * from Barang where ukuran like '%" & t_cari.Text & "%'" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 3 Then ADO_BRG.RecordSource = "select * from Barang where Satuan like '%" & t_cari.Text & "%'" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 4 Then ADO_BRG.RecordSource = "select * from Barang where HargaJualBarang =  " & Val(t_cari.Text) & "" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 5 Then ADO_BRG.RecordSource = "select * from Barang where stockawal = " & Val(t_cari.Text) & "" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 6 Then ADO_BRG.RecordSource = "select * from Barang where stockmin = " & Val(t_cari.Text) & "" ADO_BRG.Refresh ElseIf Cbo_cari.ListIndex = 7 Then ADO_BRG.RecordSource = "select * from Barang where stockmax = " & Val(t_cari.Text) & "" ADO_BRG.Refresh Exit Sub SalahCari:   MsgBox "Error : " & Err & " " & Err.Description   End If Call sambung ADO_BRG.Refresh L_count = "Jml Data : " & ADO_BRG.Recordset.RecordCount ADO_BRG.Refresh End Sub Private Sub txt_data_Click() txt_cari.Text = "" End Sub Private Sub t_cari_keypress(keyascii As Integer) Dim sTemplate As String sTemplate = "`~@#$%^&*()+|=\<,>?/;:'""" If Cbo_cari.ListIndex = 4 _ Or Cbo_cari.ListIndex = 5 _ Or Cbo_cari.ListIndex = 6 _ Or Cbo_cari.ListIndex = 7 Then _ If (Not (keyascii >= Asc("0") & Chr(13) _      And keyascii <= Asc("9") & Chr(13) _      Or keyascii = vbKeyBack _      Or keyascii = vbKeyDelete)) Then         Beep         keyascii = 0         MsgBox "Data Harus Angka"  ElseIf keyascii = 46 Then  keyascii = 0  MsgBox "Data Harus Angka" End If End If If InStr(1, sTemplate, Chr(keyascii)) > 0 Then _    keyascii = 0    keyascii = Asc(UCase(Chr(keyascii)))    'MsgBox "Maaf Tidak Boleh Menggunakan" + Chr(13) + "Karakter !#$%^&*()+|\/,;:\'`~=""" 'Pembacaan tombol Enter End Sub Private Sub cbo_cari_KeyPress(keyascii As Integer)  keyascii = AutoComplete(Cbo_cari, keyascii, False, Asli) End Sub Private Sub cbo_Urut_keypress(keyascii As Integer) keyascii = AutoComplete(cbo_Urut, keyascii, False, Asli) End Sub Private Sub cbo_Urut_click() If cbo_Urut.ListIndex = 0 Then ADO_BRG.RecordSource = "select * from Barang order by kd_Barang" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 1 Then ADO_BRG.RecordSource = "select * from Barang order by namaBarang" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 2 Then ADO_BRG.RecordSource = "select * from Barang order by ukuran" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 3 Then ADO_BRG.RecordSource = "select * from Barang order by satuan" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 4 Then ADO_BRG.RecordSource = "select * from Barang order by hargajualBarang" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 5 Then ADO_BRG.RecordSource = "select * from Barang order by stockawal" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 6 Then ADO_BRG.RecordSource = "select * from Barang order by stockmin" ADO_BRG.Refresh ElseIf cbo_Urut.ListIndex = 7 Then ADO_BRG.RecordSource = "select * from Barang order by stockmax" ADO_BRG.Refresh End If End Sub Sub JumlahData() Call sambung ADO_BRG.Refresh L_count = "Jml Data : " & ADO_BRG.Recordset.RecordCount ADO_BRG.Refresh End Sub Private Sub DG_input_dblclick() 'mengambil data kode brg dari grid T_Kode.Text = DG_Input.Columns(0).Text Cmd_Edit.Enabled = True Call ambilDtaGrid Call TidakTampak End Sub Private Sub DG_data_dblclick() 'mengambil data kode brg dari grid T_Kode.Text = DG_Input.Columns(0).Text Call ambilDtaGrid Call TidakTampak End Sub Sub TidakTampak() T_Kode.Enabled = False T_Nama.Enabled = False T_Ukuran.Enabled = False T_stockawal.Enabled = False T_HrgJual.Enabled = False T_StockMax.Enabled = False T_StockMin.Enabled = False Cbo_Satuan.Enabled = False End Sub Sub ambilDtaGrid() 'Menampilkan di Data Call sambung sql = "select * from Barang where kd_Barang='" & T_Kode.Text & "'" Set rs = Conn.Execute(sql) If Not rs.EOF Then T_Nama = rs("namaBarang") T_Ukuran = rs("ukuran") T_stockawal = rs("stockawal") Cbo_Satuan.Text = rs("Satuan") T_HrgJual.Text = rs("hargajualBarang") T_stockawal.Text = rs("stockawal") T_StockMax.Text = rs("StockMax") T_StockMin.Text = rs("StockMin") End If End Sub

Selanjutnya Anda Simpan kembali project Anda, lalu Anda jalankan project Anda dan coba buka Form Master Barang melalui Menu Utama.

Pembahasan berikutnya adalah membuat form Transaksi Pembelian Barang. Silahkan klik tombol dibawah ini untuk Tutorial Pembahasan Transaksi Pembelian Barang.

Klik Untuk Lanjut ke Pembahasan Berikutnya
